Automotive Spare Parts
NES Group supply a wide range of gaskets to provide sealing solutions for the different specifications and sealing needs of each engine part, for example:
– to provide optimized sealing solutions for the cylinder head to seal both coolants and lubricating oil all at the same time under high operating pressures and temperatures.
Engine oils contain additives that can have an adverse affect on seals.
Our portfolio of gaskets and sealing solutions are manufactured using advanced and innovative sealing technologies with choices of different materials and metals together with different elastomer layers to complement each other to ensure efficiency and the integrity of the seal.
These sealing solutions are designed for different makes and models of vehicle and the different parts of the automotive engine – for example:-
Cylinder head
Valve cover
Manifold
Oil pan
MP Gaskets and MPTOP Gaskets are manufactured with High Quality and Reliable gasket materials.
We manufacture our gaskets in collaboration with our partner who has more than 20 years of experience and developing gasket materials for the industry. In delivering the ultimate quality in sealing gaskets and innovation in designs and materials, our advantages comes from:
- R&D and manufacturing support for materials for performance and specifications requirements
- Manufacturing facility to process from raw materials to finished products
- Modern and advanced equipment
- Deep experience in manufacturing gaskets
- Complete quality management system
- Ability to produce automotive gaskets according to OEM specifications for many vehicle makes and models
Material Types Available

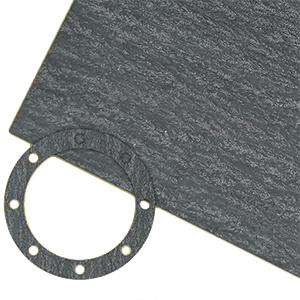

Non Asbestos Gasket Material
Non-asbestos gasket materials are made of aramid fibre, cellulose fibre, special inorganic fibre and functional fillers binded with special synthetic rubber.
End products have good sealing properties and wide range of temperature and pressure from medium to very high resistant performance.
These materials are widely used in gaskets for a wide range of applications in automotives.
Applications can for sealing of water, steam, hydrocarbon, oil, fuel, inert gas, aliphatic organic compounds and weak to strong acids and alkali.
Range of specifications for material variants:
- Compressibility: 7∼17 %
- Recovery: 40∼50 %
- Tensile Strength: ≥ 6.0∼14.0 MPa
- Density: 1.60∼1.82 g/cm³
- Working Temperature: -30∼300 ºC
- Working Pressure: ≤ 2.0∼8.0 MPa
- Thickness: 0.3∼5.0 mm
Asbestos Gasket Material
Material types:
- Asbestos Rubber Gasket Materials for Automotive – Air Compressors, Engine, Gear Box & Oil Pan
- High quality low-chlorine asbestos fibre and oil resistant synthetic rubber
- Oil Resistant Asbestos Rubber Gasket Materials
- High quality low-chlorine asbestos fibre and oil resistant synthetic rubber
- Normal Asbestos Rubber Gasket Materials
- Asbestos fibre and natural rubber
- Asbestos rubber Gasket Materials with Steel Net and Graphite Surface
- Asbestos fibre, natural rubber on the two faces faces, steel net in the middle and graphite surface
- Asbestos Rubber Gasket Materials for Automotive – Air Compressors, Engine, Gear Box & Oil Pan
Range of specifications for different materials:
- Tensile Strength: ≥ 21.0∼5.0 MPa
- Compressibility: 7∼17 %
- Recovery: ≥ 50∼35 %
- Stress Relaxation: ≤ 45∼50 %
- Density: 1.6∼2.0 g/cm³
- Flexibility at Room Temperature: Bend 180º on rod with diameter of 12 times the nominal thickness of the sample – NO CRACK
- Thickness: 0.5∼6.0 mmTensile strength testing is not applicable for thickness over 3.0 mm
- Working Temperature varies for different material type. Contact us for more details.
Cork Gasket Material
Cork grain with rubber material increases the compressibility and flexibility of the gasket material.
Applicable for oil resistant gaskets which are used for automotive oil pan, shock absorption and sound insulation.
Range of specifications for material:
- Compressibility: 25±10 %
- Recovery: ≥ 75 %
- Density: ≤ 1.1 g/cm³
- Tensile Strength: ≥ 2.0 MPa
- Hardness: 75±15 MPa
- Thickness: 0.5∼5.0 mm

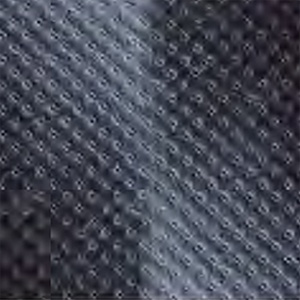

Composite Gasket Material
Material Types:
- Steel Frame Non Asbestos Composite Gasket Material
- Zinc coated steel or tin plate (perforated/Non perforated) Non Asbestos
- Steel Frame Asbestos Composite Gasket Material
- Zinc coated steel or tin plate (perforated), asbestos sheet
- Steel Frame Graphite Composite Graphite Material
- Zinc coated steel or tin plate (perforated), graphite paper
- Steel Frame Sepolite Composite Gasket Material
- Zinc coated or tin plate (perforated), sepiolite sheet
- Steel Frame Asbestos Rubber Composite Gasket Material
- Zinc coated steel or tin plate, asbestos fibre and rubber
- Sepolite Steel Frame Composite Gasket Material with Rubber
- Zinc coated steel or tin plate, sepiolite fibre and rubber
- Tin Plate Composite Gasket Material with Double Metal Surface
- Tin plate (perforated, asbestos, rubber
- Stainless Steel Composite Gasket Material with Double Metal Surface
- 409# stainless steel (perforated), asbestos, rubber
- Yellow Tiplate Composite Gasket Material with Double Metal Surface
- Tin plate (perforated) asbestos and rubber
xxxx
